Product Description

Products Description

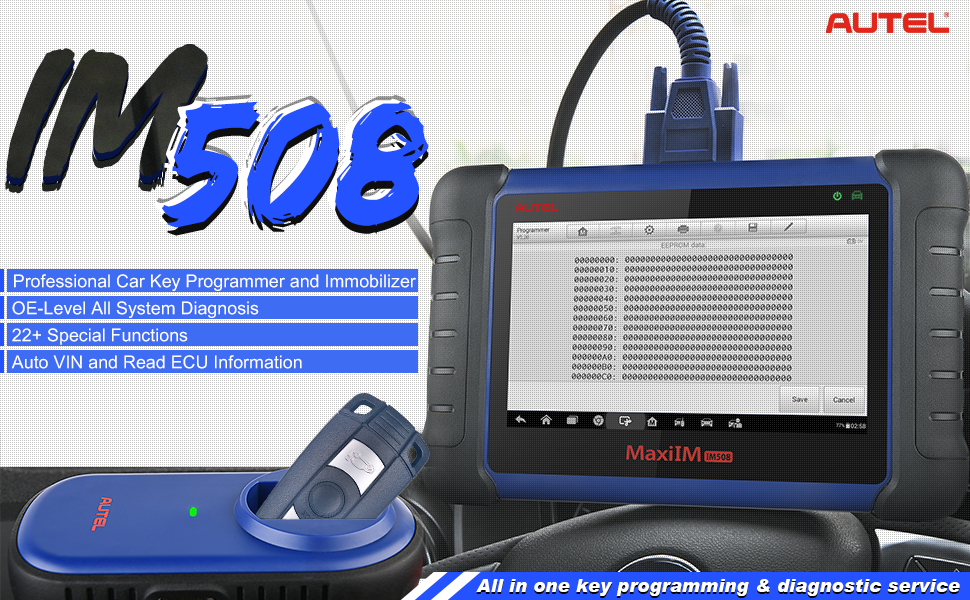

Autel MaxiIM IM508

Autel MaxiIM IM508 is a professional IMMO Key Programming Scanner with Complete all system OBD2 Diagnostic functions and 22+ most useful service.

Equipped with the XP200 key programmer, IM508 can perform various IMMO functions like Read PIN/CS(All Key Lost), Key Generation, Key Learning, Remote Learning, IMMO ECU Reset/ Coding, Transponder read/write, etc extraordinary IMMO service.
Autel MaxiIM IM508 Features:
* Powerful combination of key programming/ all system diagnostics/ advanced maintenance services
* Smart Mode for guided and automated key learning
* Expert Mode for advanced key learning
* Read PIN/CS (all key lost), key generation, key learning, remote learning
* IMMO ECU reset/adaptation, refresh/coding
* Backup/ Repair IMMO Data
* Transponder read/write, EEPROM/MCU read/write
* Complete capabilities for codes, live data, Auto VIN scan, ECU information, adaptation, matching, coding, etc
* Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
* Advanced maintenance services EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

Editorial review: Autel IM508 A Must-have Key Programmer & Scan Diagnostic Tool
IM508 IMMO application provides Smart Mode and Expert Mode to perform comprehensive IMMO functions including:
* Read PIN/CS(All Key Lost),
* Key Generation, Key Learning, Remote Learning,
* IMMO ECU Reset/Adaptation/Refresh/Coding
* Benz FEM/BDC Key Learning/ ECU Adaptation,
* BMW CAS3/2 Key Learning,
* VW/Audi/ Skoda/ Seat IMMO III/IV/V Add Key, All Key Lost,

NOTE: When connected to XP400, IM508 can further extend its capabilities to become Autel top-level key programming tool.

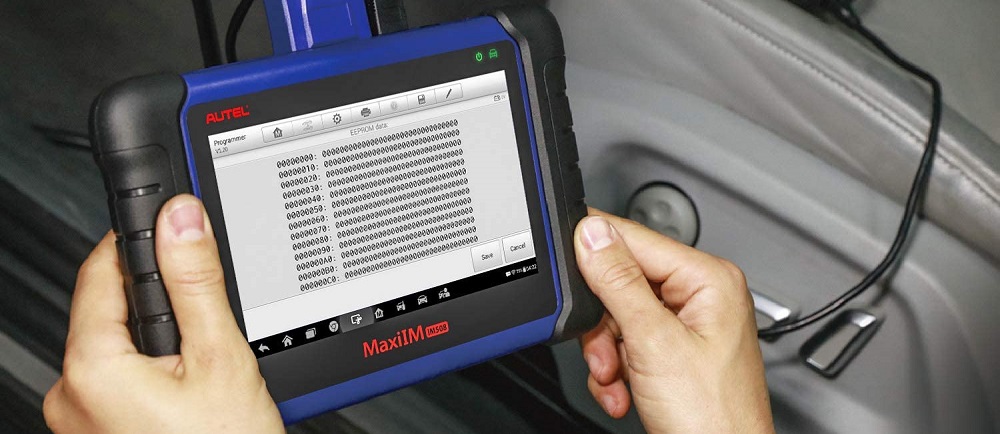

Key Programming Functions:

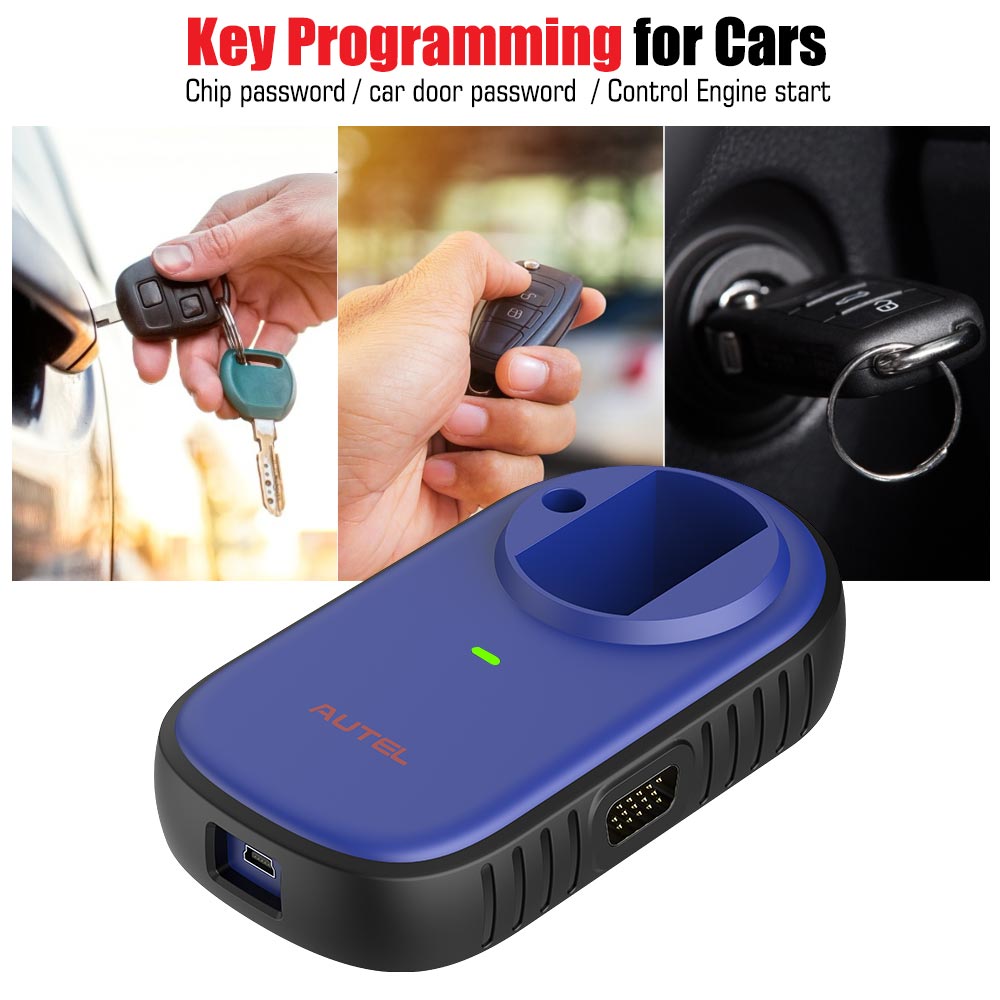

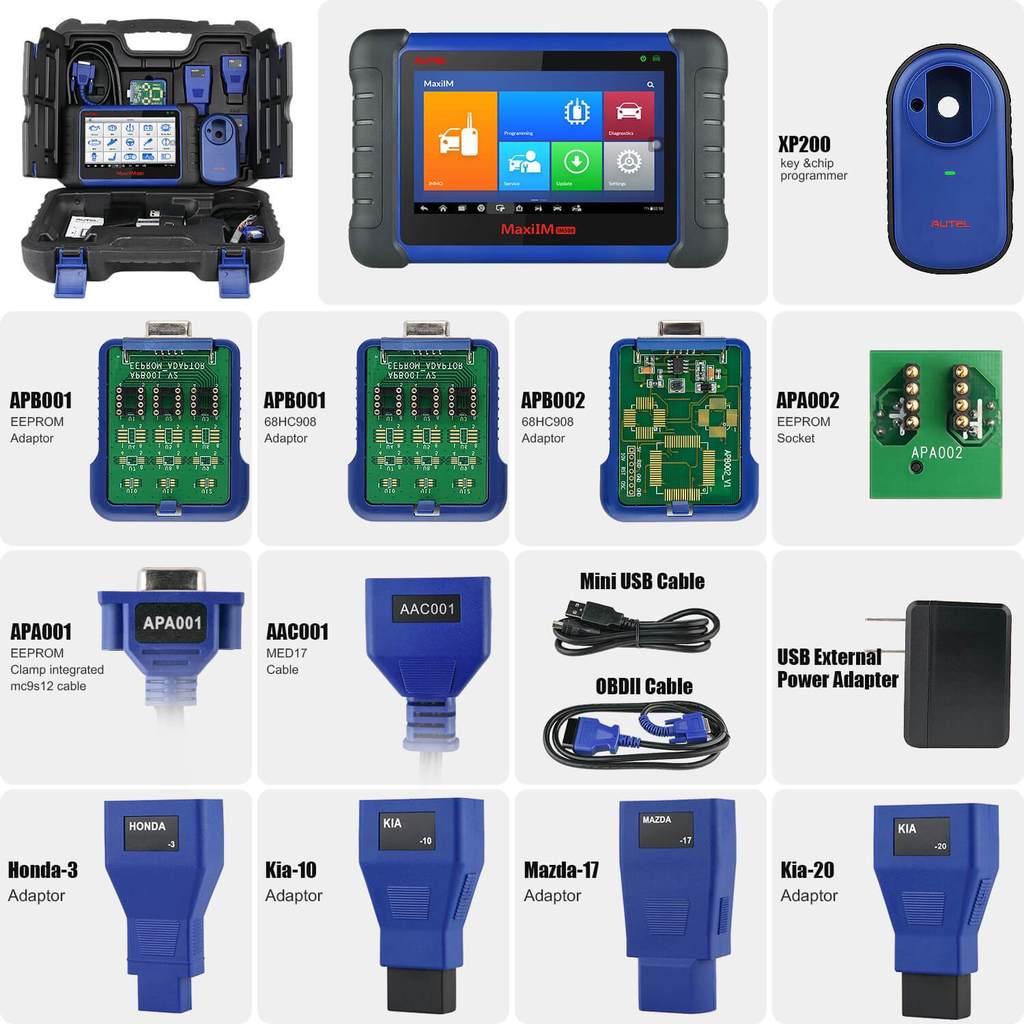

With Autel XP200 Key Programmer, Autel IM508 key scanner can perform key programming function:
* Key chip read, retrieve and write
* key read/ write/ generation
* EEPROM read & write
* MCU read & write
* as well as other key related functions

OE- Level all modules diagnosis
Autel MaxiIM IM508 Key Programming scanner can perform OE-Level diagnosis on ALL available modules, like ABS, SRS, Engine,Transmission, Brake System, etc.
* compatible with more than 80 US, Asian and European makes and models
* Read & Clear Fault Codes
* Auto VIN Scan
* View Live Data Stream
* Component Test, I/M Readiness ……

Autel IM508 IMMO Function car List

Autel IM508 key programming functions work on: Audi, BMW, Benz, Chery, Chrysler, Dodge, Seat, Skoda, Ferrari, Fiat, Ford, Foton, Buick, Cadillac, Chevrolet, GM, Honda, Jaguar, Jeep, Kia, Landrover, Lincoln, MG, MINI, Maserati, Mazda, Peugeot, Porsche, Roewe, Rolls-Royce, Suzuki, Toyota, VOLVO, Volkswagen, etc 60+ Vehicle Makes. Detailed coverage list (select IM508(IMMO) from the drop-down)

NOTE: IMMO & Programming are NOT universally compatible, If you’re concerned about a specific vehicle’s compatibility, Please take further confirmation.

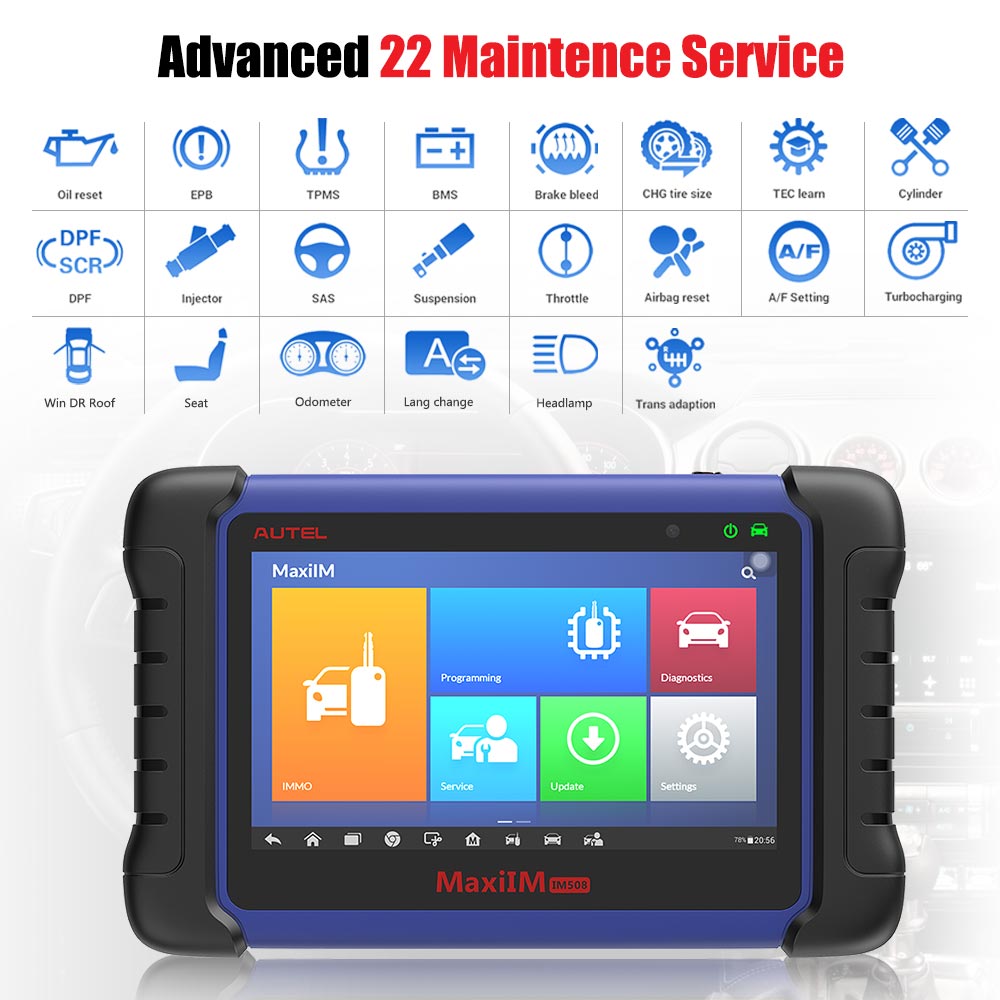

22 advanced service functions
Autel MaxilM IM508 includes 22 maintenance functions. Along with the standard service functions like EPB, SAS, and oil light reset, it has capabilities that are harder to find in hand-held scan tools, like DPF Regeneration, BMS and Relearning/resetting TPMS sensors.
More Convenient service
* Free 7*24 Remote Technical Support
* 1-year Warranty & 1-year free updates online.

Note: After 1-year you can still use the key programming scanner without any issues even don’t update.

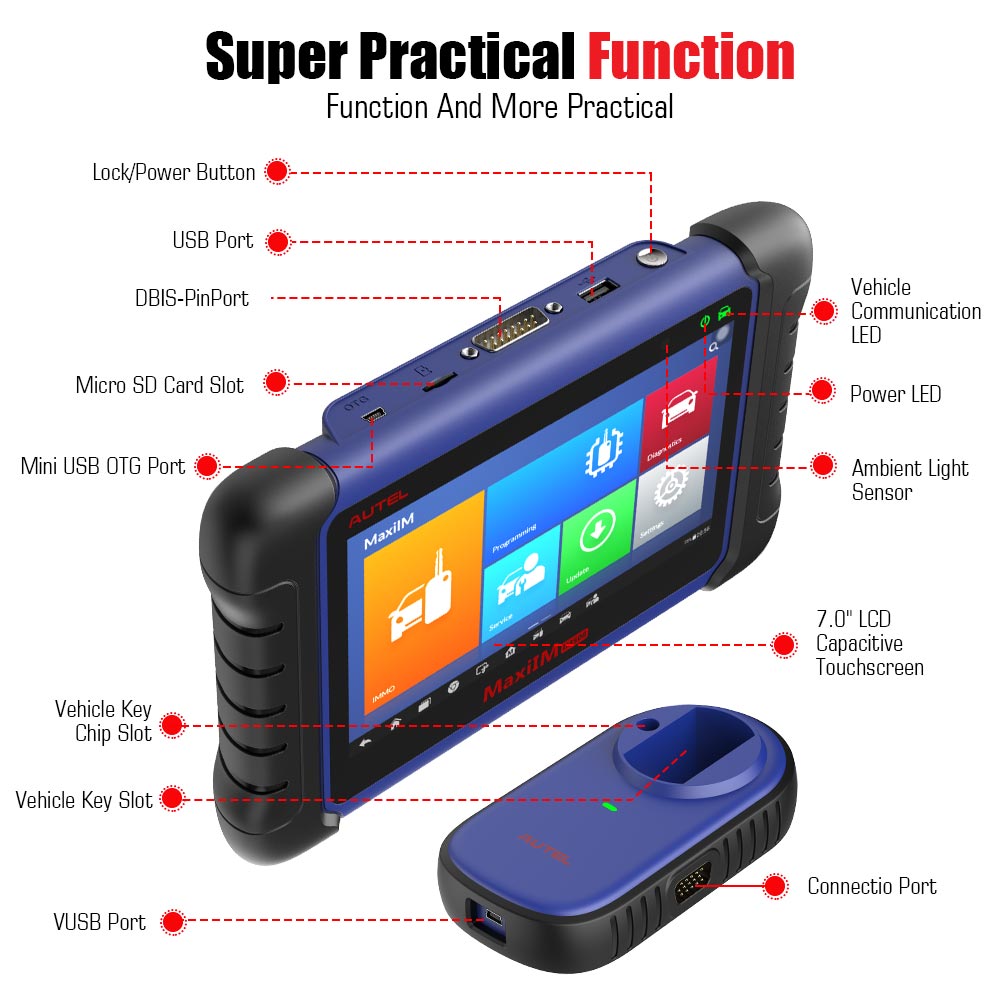

Operating System
AndroidTM 4.4.4
Cortex-A9 processor (1.6 GHz)
7-inch LCD capacitive touchscreen with 1024×600 resolution


Mini USB 2.0
USB 2.0
Micro SD card (supports up to 32GB)
Ambient light sensor for brightness auto changing
Audio Input/Output
Input: N/A
Output: buzzer
Power and Battery
3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
Tested Battery Life
Around 4.5 hours of continuous use
Battery Charging Input
5 V/1.5 A
Power Consumption
500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.
0 to 50°C (32 to 122°F)
Storage Temp.
-20 to 60°C (-4 to 140°F)
Operating Humidity
5% – 95% non-condensing

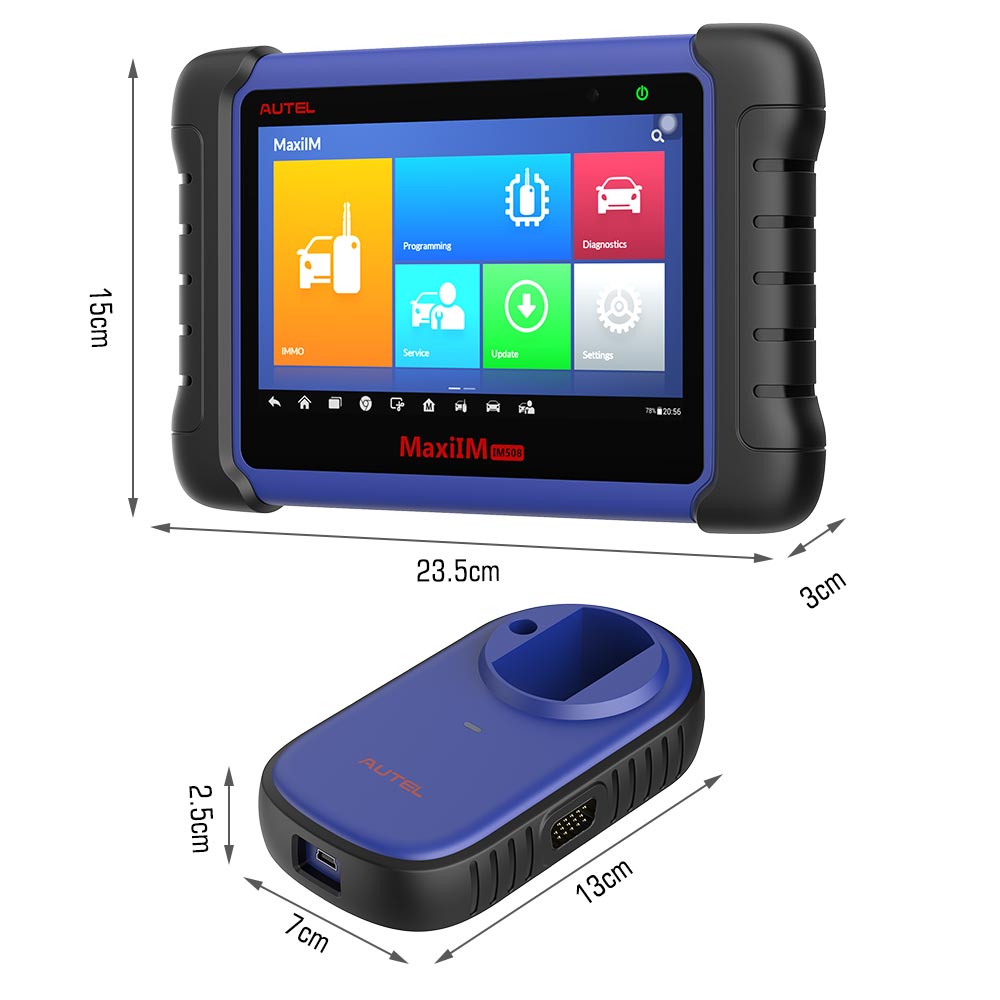

Net Weight
Net Weight
Supported Automotive Protocols
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo
Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
